Zip 9kW

ZIP Digital Tankless Water Heaters* are designed to re-define your bathing experience by providing continuous hot water instantaneously. With beautiful aesthetics and compact size, ZIP Water heaters fit easily in the orientation of your choice. Moreover, you can change the temperature with a feather touch Smart Display Panel. With superior safety features, ZIP Water Heaters offer a wonderful user experience.

    •  Usage Type : Bathroom
    •  Water Consumption : High Usage – > 3 back to back showers
    •  Concealed Installation : Yes

    MRP:  25,500/-

    Check Availability At

    Delivered in 8 - 10* business days
    Compare

    Product Benefits

    Always be in control with Smart Display.





      Easy to use Feather Touch control.



        Compact size to suit installation of your choice with flexible mounting.



          Superior Safety for your family with Digital Thermostatic control & Thermal cut out.



            Save energy with automatic power control.



              Product Video

              Product Specification

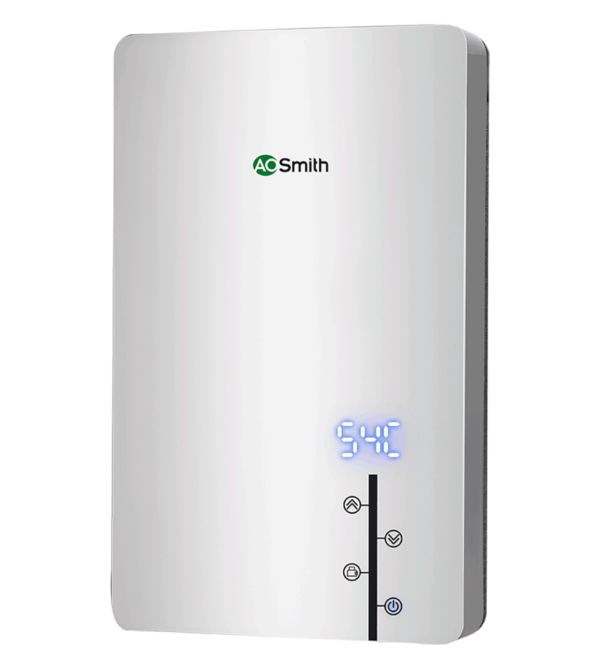

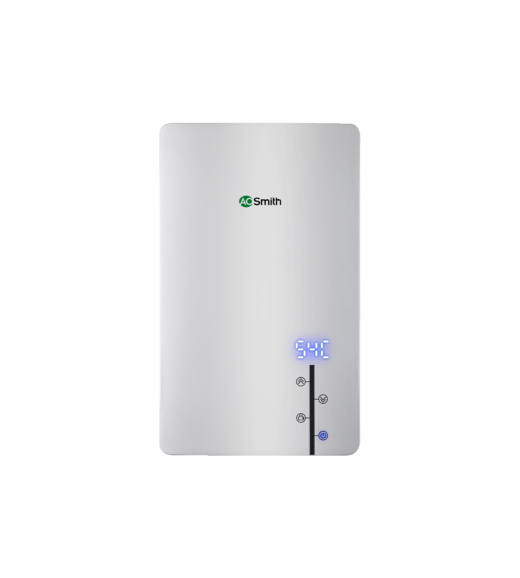

              AO Smith ZIP 9KW Tankless Water Heaters
              Dimension in mm (H*W*D)

              360 mm x 220 mm x 99 mm

              Rated water pressure(bar)

              6

              Color

              Silver

              Net Weight (kgs.)

              3.8

              Power [kW]

              9

              Voltage/Frequency [V/Hz]

              230~/50

              Rated Current [Amps]

              39.2

              Circuit Breaker (MCB) rating [Amps]

              63

              RCCB rating (Earth leakage protector)

              63Amps, 30mA AC

              Efficiency Δt=25°C [ltr/min.]*

              5.1

              Wire size for wiring [sq.mm]

              6

              Shower head size [inch] maximum

              8

              Temperature range [°C]

              30-55**

              Inlet/Outlet connections [inch]

              1/2 BSP

              Dimension in mm (H*W*D)

              360 mm x 220 mm x 99 mm

              Rated water pressure(bar)

              6

              Color

              Silver

              Net Weight (kgs.)

              3.8

              Power [kW]

              9

              Voltage/Frequency [V/Hz]

              230~/50

              Rated Current [Amps]

              39.2

              Circuit Breaker (MCB) rating [Amps]

              63

              RCCB rating (Earth leakage protector)

              63Amps, 30mA AC

              Efficiency Δt=25°C [ltr/min.]*

              5.1

              Wire size for wiring [sq.mm]

              6

              Shower head size [inch] maximum

              8

              Temperature range [°C]

              30-55**

              Inlet/Outlet connections [inch]

              1/2 BSP
